NTC temperature sensors play a critical role in ensuring safety in charging piles and charging guns. They are primarily used for real-time temperature monitoring and preventing equipment overheating, thereby safeguarding the safety and reliability of the charging process. Below is an analysis of their specific applications and functions:

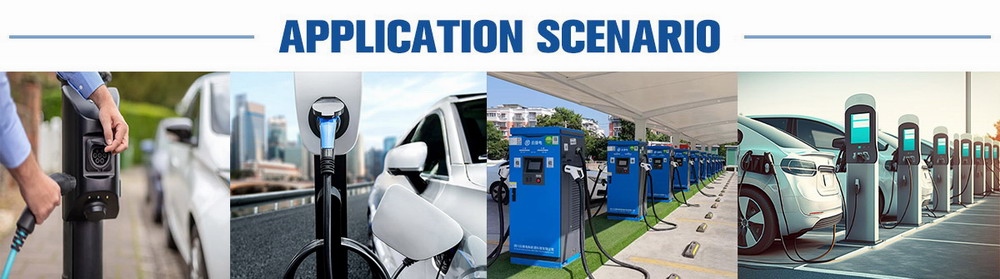

1. Application Scenarios
(1) Temperature Monitoring in Charging Guns
- Contact Point and Cable Joint Monitoring: During high-power operations (e.g., DC fast charging), large currents may generate excessive heat at contact points or cable joints due to contact resistance. NTC sensors embedded in the gun head or connectors monitor temperature changes in real time.
- Overheat Protection: When temperatures exceed preset thresholds, the charging control system automatically reduces current or halts charging to prevent fire hazards or equipment damage.
- User Safety: Prevents the charging gun surface from overheating, avoiding user burns.
(2) Temperature Management Inside Charging Piles
- Power Module Thermal Monitoring: High-voltage power modules (e.g., AC-DC converters, DC-DC modules) generate heat during operation. NTC sensors monitor heatsinks or critical components, triggering cooling fans or adjusting power output.
- Environmental Adaptability: Outdoor charging piles must withstand extreme temperatures. NTC sensors help optimize charging parameters based on ambient conditions (e.g., preheating batteries in cold winters).
2. Core Advantages of NTC Sensors
- High Sensitivity: NTC resistance changes significantly with temperature, enabling rapid response to minor fluctuations.
- Compact Size and Low Cost: Ideal for integration into compact charging guns and piles, offering cost efficiency.
- Stability and Durability: Encapsulation materials (e.g., epoxy resin, glass) provide waterproofing and corrosion resistance, suitable for harsh environments.
3. Key Design Considerations
- Optimal Placement: Sensors must be positioned close to heat sources (e.g., charging gun contacts, IGBT modules in piles) while avoiding electromagnetic interference.
- Temperature Calibration and Linearization: Nonlinear NTC characteristics require compensation via circuits (e.g., voltage dividers) or software algorithms (lookup tables, Steinhart-Hart equation).
- Redundancy Design: High-safety applications may use multiple NTC sensors to ensure single-point failures do not compromise safety.
- Communication and Response Mechanisms: Temperature data is transmitted via CAN bus or analog signals to the Battery Management System (BMS) or charging controller, triggering graded protection protocols (e.g., power reduction → alarms → shutdown).
4. Industry Standards and Challenges
- Safety Certifications: Compliance with standards such as IEC 62196 and UL 2251 for temperature monitoring requirements.
- Extreme Condition Challenges: Stability at temperatures above 120°C or below -40°C requires material advancements (e.g., thick-film NTC).
- Fault Diagnostics: Systems must detect NTC failures (e.g., open circuits) to avoid false protection triggers.
5. Future Trends
- Smart Integration: Combining with AI algorithms for predictive maintenance (e.g., predicting contact degradation via historical data).
- High-Power Scenarios: As ultra-fast charging (350kW+) becomes widespread, NTCs must improve response speed and high-temperature resistance.
- Alternative Solutions: Some applications may adopt PT100 or infrared sensors, but NTCs remain dominant due to cost-effectiveness.
Conclusion
NTC temperature sensors are a vital component in the safety chain of EV charging infrastructure. Through real-time monitoring and rapid response mechanisms, they effectively mitigate overheating risks while enhancing operational efficiency. As EV charging power continues to rise, advancements in NTC precision, reliability, and intelligence will be crucial to supporting industry growth.
