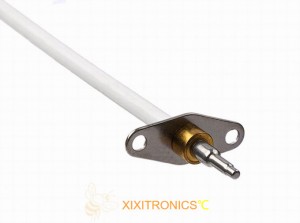

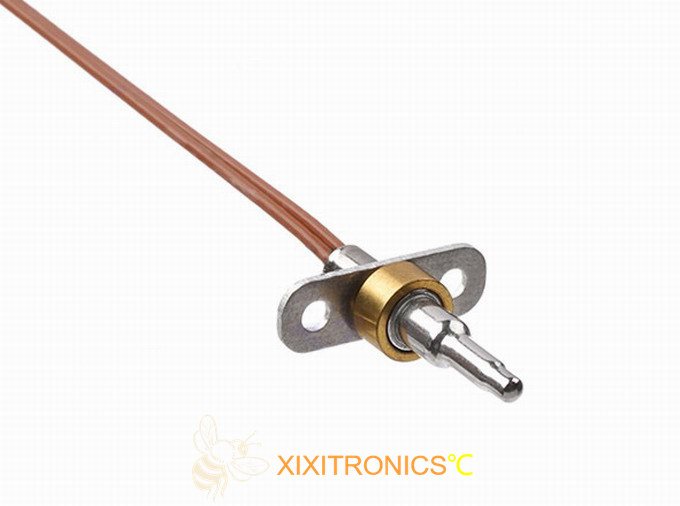

Bullet Shape Temperature Sensor with flange For Electronic Kettle,Milk Heater,water heater

Short Description:

This bullet shape temperature sensor with flange is widely used in the field of kettles, water heaters and other home appliances because of its high precision, fast thermal response and stable performance. We produce millions of these sensors every year.

Send email to us

Product Detail

Product Tags

Fast Response Temperature sensor for Electronic Kettle,Milk Heater,water heater

This bullet shape sensor with characteristics of small size probe head, high precision and fast response, are widely used for electric kettle, coffee machine, water heater, milk heater, milk foam machine, heating component of direct drinking machine and other fields with high sensitivity of temperature measurement.
MFB-8 series are with excellent temperature resistance, can be used up to 180℃, prevent overheating and dry burning from damaging the electrical parts of products. Minimum ф 2.1mm is a available for sensing part of encapsulated NTC thermistor, through process controlling of internal high thermal conductivity medium, to ensure the product thermal time constant τ(63.2%)≦2 seconds.
MFB-08 series is designed with ground terminal piece to avoid electricity leakage, in accord with UL safety and so on.

Features:

■ High Sensitivity and the Fastest thermal response
■ Good waterproof performance, moisture and high temperature resistance
■ A radial glass-encapsulated thermistor element is sealed with epoxy resin, Excellent performance of voltage resistance.
■ Proven long term Stability, Reliability, and High Durability
■ Easy to install, and can be customized according to your every single requirement
■ Usage of Food-grade level SS304 housing, meet the FDA and LFGB certification.
■ Products are in accordance with the RoHS, REACH certification.

Applications:

■ Electric Kettle, Milk Foam MachineCoffee machine
■ Coffee machine, Milk Warmer
■ Water Heater, Hot water boiler tanks, Heat Pump
■ Warm-water Bidet Toilets (instant inlet water)
■ Covers the whole water temperature range, wide application range

Characteristics:

R25℃=10KΩ±1%, B25/85℃=3435K±1% or
R25℃=50KΩ±1%, B25/50℃=3950K±1%or
R25℃=100KΩ±1%, B25/50℃=3950K±1%
2. Working temperature range:
-30℃～+105℃ ,
-30℃～+150℃
-30℃～+180℃
3. Thermal time constant is MAX.3 sec.(in stirred water)
4. Insulation voltage is 1800VAC,2sec.
5. Insulation resistance is 500VDC ≥100MΩ
6. Cable customized ,PVC, XLPE, teflon cable is recommended
7. Connectors are recommended for PH,XH,SM,5264 and so on
8. Above characteristics all can be customized
