Epoxy Coated Molded Probe Head Temperature Sensor For Car Air Conditioner

Short Description:

This is an epoxy resin coated temperature sensor featuring a molded probe head, according to the customer’s requirements, the head size is completely consistent. Good sealing, fast thermal response, excellent moisture resistance.

Send email to us

Product Detail

Product Tags

Features:

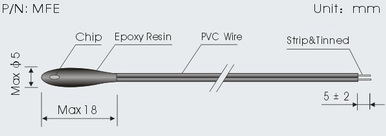

■ Consistent dimension of molded probe head
■ A glass-encapsulated thermistor element is sealed with epoxy resin
■ Proven long term Stability and Reliability , Insulation voltage: 1800VAC,2sec ,
■ High Sensitivity and Fast thermal response ,Insulation resistance: 500VDC ≥100MΩ
■ Long and flexible leads for special mounting or assembly, PVC or XLPE cable is recommended
■ Connectors are recommended for PH,XH,SM,5264 and so on

Applications:

■ Air-conditioners (room and outdoor air)
■ Automobile air conditioners & heaters
■ New energy vehicle battery ( BMS ). Recommendation as follows:
R0℃=6.65KΩ±1.5% B0/25℃=3914K±3.5% or
R25℃=10KΩ±1% B25/50℃=3950K±1% or
R25℃=10KΩ±1% B25/85℃=3435K±1%
■ Electric water boilers and water heater tanks (surface)
■ Fan heaters , ambient temperature detection
