Fast response copper shell threaded sensor for home appliances such as kettles, coffee makers, water heaters,milk warmer

Short Description:

This temperature sensor with a copper threaded probe is widely used in kitchen appliances, such as Kettle, Coffee machine, Water heater, Milk foam machine and milk warmer, which all need to be waterproof or moisture-proof. Our current mass production of tens of thousands of units per month proves that the product is stable and reliable.

Send email to us

Product Detail

Product Tags

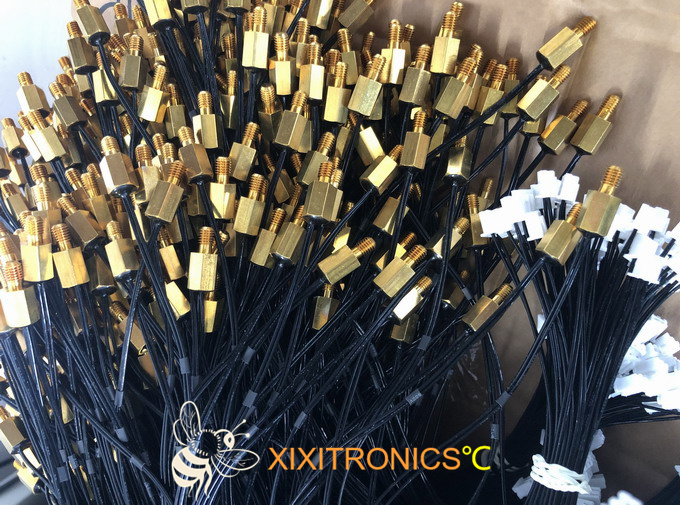

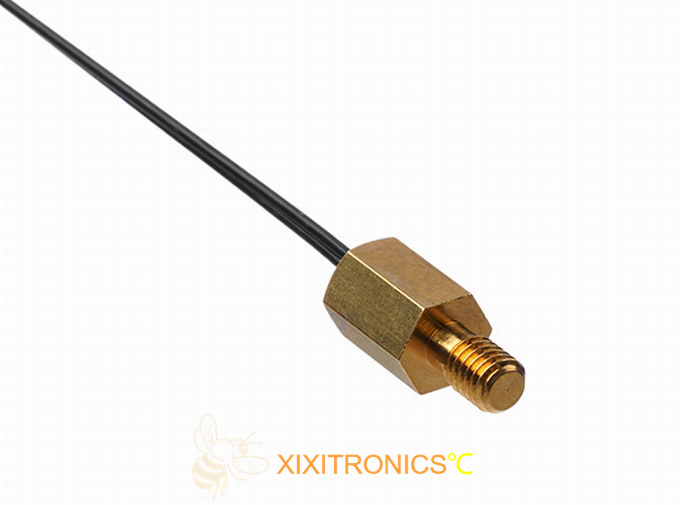

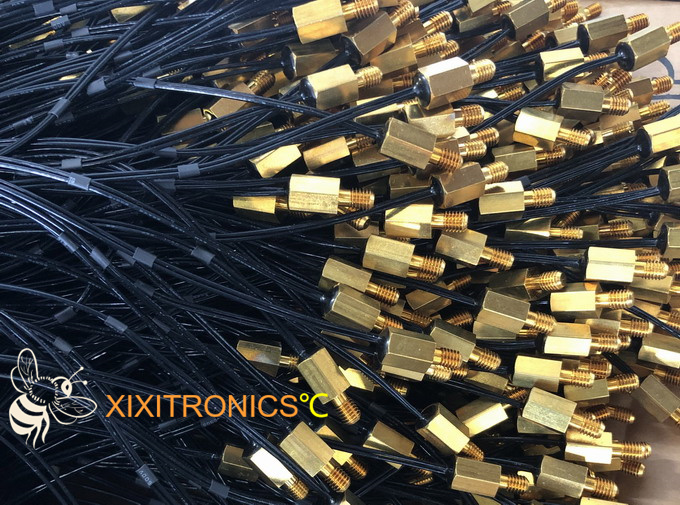

Fast response copper shell threaded Temperature sensor for kettles, coffee makers, water heaters,milk warmer

Components in household appliances, especially kitchen appliances and bathroom appliances require high water and moisture resistance, in case of a temperature sensor, the resistance value will change, resulting in temperature measurement and control failure.
MFP-S9 series adopts epoxy resin with good performance of moisture-resistance for encapsulating, using high accuracy chip, other high quality materials with advanced processing technology, which make the products have stable and reliable performance, high sensitivity of temperature measurement.

Features:

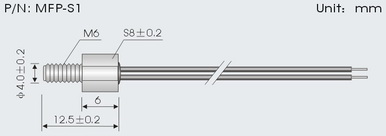

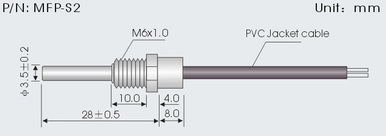

■ To install and fixed by screw thread , easy to install, size can be customized
■ A glass thermistor is sealed with epoxy resin, moisture and high temperature resistance
■ Proven long term Stability and Reliability ,wide range of applications
■ Excellent performance of voltage resistance.
■ Usage of Food-grade level SS304 housing, meet the FDA and LFGB certification.
■ Products are in accordance with the RoHS, REACH certification.

Applications:

■ Water Heater, Boiler, Hot water boiler tanks
■ Commercial coffee machine
■ Automobile engines (solid), engine oil (oil), radiators (water)
■ Soybean milk machine
■ Power system

Characteristics:

1. Recommendation as follows:
R25℃=100KΩ±1%, B25/85℃=4267K±1% or
R25℃=100KΩ±1%, B25/50℃=3950K±1% or
R25℃=98.63KΩ±1%, B25/85℃=4066K±1%
2. Working temperature range:
-30℃～+150℃ or -30℃～+180℃
3. Thermal time constant: MAX10 sec. ( typical in stirred water )
4. Insulation voltage: 1800VAC,2sec.
5. Insulation resistance: 500VDC ≥100MΩ
6. PVC, XLPE or teflon cable is recommended
7. Connectors are recommended for PH, XH, SM, 5264 and so on
8. Above characteristics all can be customized
