fast response Coffee Machine Temperature sensor

MFB-08 series, with characteristics of small size, high precision and fast response, are widely used for coffee machine, electric kettle, milk foam machine, milk heater, heating component of direct drinking machine and other fields with high sensitivity of temperature measurement.
MFB-8 series are with excellent temperature resistance, can be used up to 180℃, prevent over heating and dry burning from damaging the electrical parts of products. Minimum ф 2.1mm is a available for sensing part of encapsulated NTC thermistor, through process controlling of internal high thermal conductivity medium, to ensure the product thermal time constant τ(63.2%)≦2 seconds, and the fastest can reach 0.5 seconds.
MFB-08 series is designed with ground terminal piece to avoid electricity leakage , in accord with UL safety and so on.

Features:

■ High Sensitivity and the Fastest thermal response
■ Good waterproof performance , moisture and high temperature resistance
■ A radial glass-encapsulated thermistor element is sealed with epoxy resin, Excellent performance of voltage resistance.
■ Proven long term Stability ,Reliability, and High Durability
■ Easy to install, and can be customized according to your every single requirement
■ Usage of Food-grade level SS304 housing, meet the FDA and LFGB certification.
■ Products are in accordance with the RoHS, REACH certification.

 Applications:

■ Coffee machine, Electric Kettle
■ Milk Foam Machine, Milk Warmer
■ Water Heater, Hot water boiler tanks, Heat Pump
■ Automobile engines (solid), engine oil (oil), radiators (water)
■ Intelligent Closestool ,Warm-water Bidet Toilets (instant inlet water)
■ Covers the whole water temperature range, wide application range

Characteristics:

1. Recommendation as follows:
R25℃=100KΩ±1%, B25/85℃=4267K±1% or
R25℃=100KΩ±1%, B25/50℃=3950K±1% or
R25℃=98.63KΩ±1%, B25/85℃=4066K±1%
2. Working temperature range:
-30℃～+105℃ ,
-30℃～+150℃
-30℃～+180℃
3. Thermal time constant is 0.5-3 sec.(in stirred water)
4. Insulation voltage is 1800VAC,2sec.
5. Insulation resistance is 500VDC ≥100MΩ
6. PVC or TPE sleeved cable is recommended
7. PH,XH,SM,5264 or other connectors is recommended
8. Characteristics are optional.

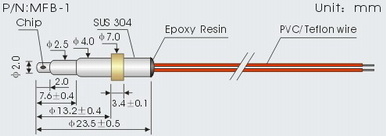

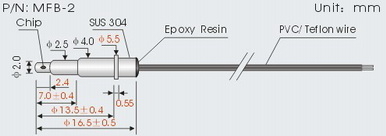

Dimensions:
