MFT-04 series can be customized for various types of housing, used in many environmental temperature measurement, like water temperature detection of small household appliances, fish tank temperature measurement. Using epoxy resin to seal the metal housings, with stable waterproof and moisture-proof performance, which can pass the IP68 waterproof requirements. This series can be customized for special high temperature and high humidity environment.

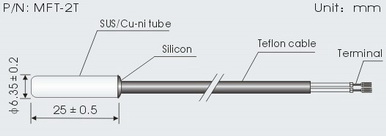

■ A glass-encapsulated thermistor is sealed in a Cu/ni , SUS housing
■ High precision for Resistance value and B value
■ Proven long term Stability and Reliability, and good consistency of product
■ Good performance of moisture and low temperature resistance and voltage resistance.
■ Products are in accordance with the RoHS, REACH certification
■ The parts of SS304 material which connected the food directly can meet the FDA and LFGB certification

■ Thermo-hygrometer
■ Water dispenser
■ Washer dryers
■ Dehumidifiers and dishwashers (solid inside/surface)
■ Small household appliances

1. Recommendation as follows:
R25℃=10KΩ±1% B25/85℃=3435K±1% or
R25℃=49.12KΩ±1% B25/50℃=3950K±1 or
R25℃=50KΩ±1% B25/50℃=3950K±1%
2. Working temperature range: -40℃～+105℃
3. Thermal time constant is MAX.15sec.
4. Insulation voltage is 1500VAC,2sec.
5. Insulation resistance is 500VDC ≥100MΩ
6. PVC or TPE sleeved cable is recommended
7. Connectors are recommended for PH,XH,SM,5264,  2.5mm / 3.5mm single track audio plug
8. Characteristics are optional.
