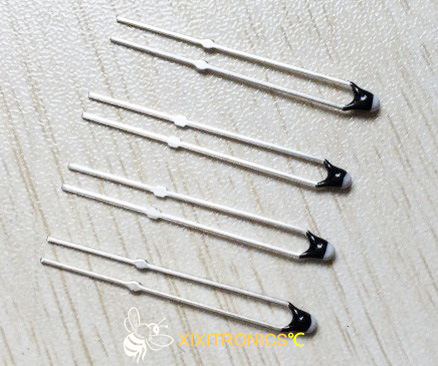

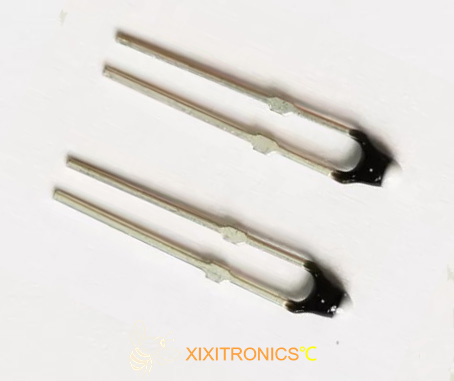

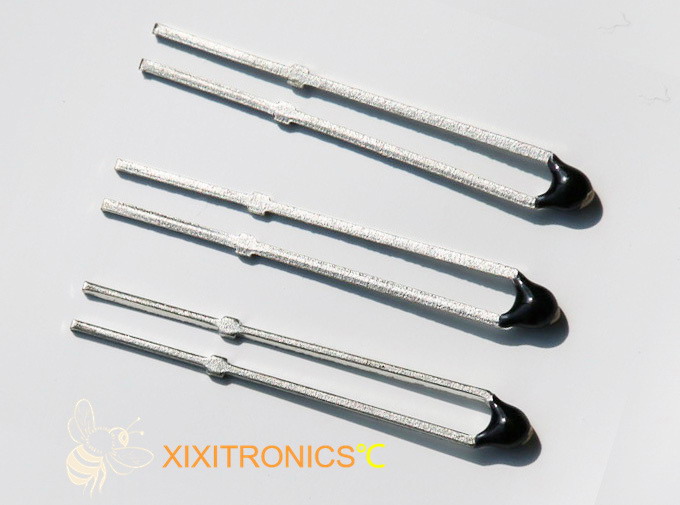

Lead Frame Epoxy Coated Thermistor MF5A-3B
Lead Frame Epoxy Coated Thermistor MF5A-3B
This thermistor with bracket is suitable for various applications, its high precision plus tape/reel options makes this range very flexible and cost-effective.
When high measurement accuracy is required over a wide temperature range, this high precision NTC thermistors are usually selected.
Features:
■ High accuracy over wide temperatures: -40°C to +125°C
■ Epoxy-coated lead-frame NTC thermistors
■ High Sensitivity and Fast thermal response
■ Thermally Conductive Epoxy coated
■ Rigid form-factor, available in bulk, taped reel or ammo pack
Caution:
♦ When bending the lead wires using for example a radio plier make sure to have a minimum distance from the sensor head of 3 mm.
♦ Do not apply a mechanical load of more than 2 N to the lead bracket.
♦ When soldering make sure the minimum distance from the sensor head is 5 mm, use a soldering iron with 50 W and solder for a maximum 7 seconds at 340˚C. If you plan to cut the lead wire shorter than the above minimum distance please contact us
Applications:
■ Mobile devices, battery chargers, battery packs
■ Temperature sensing、 control and compensation
■ Fan motors, automotive, office automation
■ Home electronics, security, thermometers, measuring instruments
