One-piece TPE sensor with flexible ring fastener for measuring the temperature of water pipes

Short Description:

This one-piece TPE injection moulded sensor with flexible ring fasteners can be adjusted to suit the diameter of the water pipe and is used to measure the temperature of water pipes of different size.


Product Detail

Product Tags

TPE flexible ring fastener temperature sensor suitable for different size water pipes

This one-piece TPE injection moulded sensor with flexible ring fasteners can be adjusted to suit the diameter of the water pipe and is used to measure the temperature of water pipes of different diameters. The unique slight concave curvature design fits perfectly into the round shape of the water pipe and provides full contact to accurately measure the temperature of the water pipe, and the contact surface of the copper shell is designed to improve thermal reaction time.

Features:

■ IP68 Rated , Consistent dimension of molded probe head
 TPE Injection Over-molded probe
 Proven long term Stability and Reliability
 High Sensitivity and Fast thermal response

Applications:

 HVAC equipment, solar systems
 Automobile air conditioners, agricultural equipment
 Refrigerated display cases, Vending machines
■ Fish Tank, Bathtub, Swimming pool

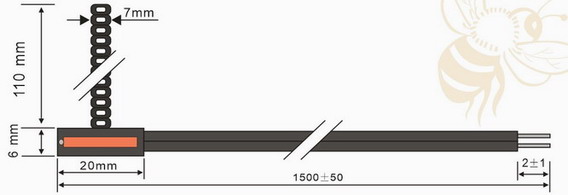

Dimensions:

TPE overmolding sensor

Product specification:

Specification
R25℃
(KΩ)
B25/50℃
(K)
Disspation Constant
(mW/℃)
Time Constant
(S)
Operation Temperature

(℃)

XXMFT-O-10-102□ 1 3200
approx. 3  typical in still air at 25℃
6 - 9   typical in stirred water
-30~105
XXMFT-O-338/350-202□
2
3380/3500
XXMFT-O-327/338-502□ 5 3270/3380/3470
XXMFT-O-327/338-103□
10
3270/3380
XXMFT-O-347/395-103□ 10 3470/3950
XXMFT-O-395-203□
20
3950
XXMFT-O-395/399-473□ 47 3950/3990
XXMFT-O-395/399/400-503□
50
3950/3990/4000
XXMFT-O-395/405/420-104□ 100 3950/4050/4200
XXMFT-O-420/425-204□ 200 4200/4250
XXMFT-O-425/428-474□
470
4250/4280
XXMFT-O-440-504□ 500 4400
XXMFT-O-445/453-145□ 1400 4450/4530
