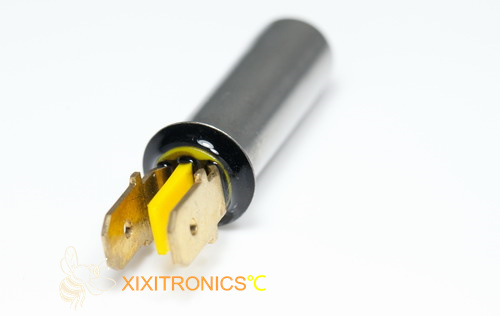

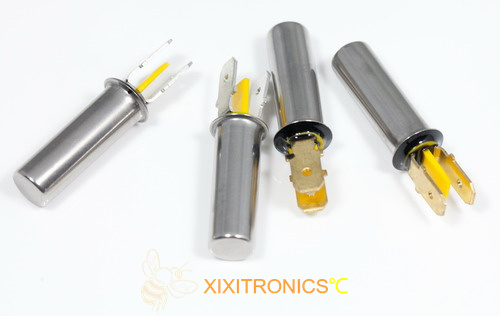

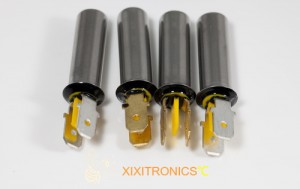

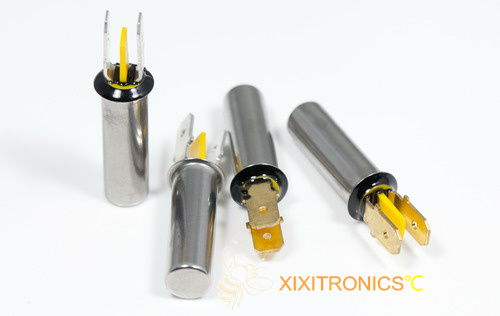

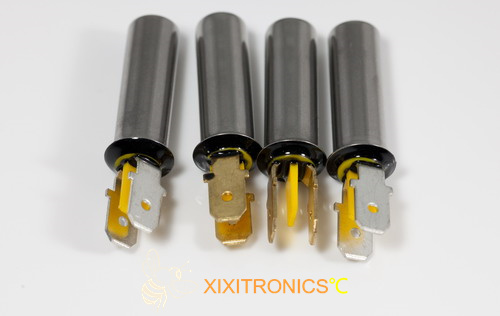

Push-In Immersion Temperature Sensor for Coffee Machine
push-fit Immersion Temperature Sensor For Coffee Machine

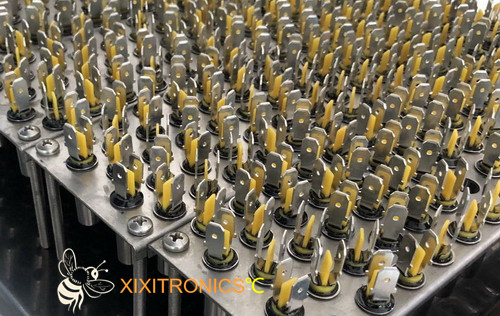

This product is a customized push-in immersion temperature sensor, which has high requirements for food-safety level and edge dimensions of the metal housing and thermal response time. Years of mass production and supply are proof of its stability and reliability, also suitable for most coffee machines.
Features:
■ Miniature, immersible, and Fast thermal response
■ To install and fixed by Plug-In connector, easy to install, size can be customized
■ A glass thermistor is sealed with epoxy resin, Suitable for use in high humidity and high moisture conditions
■ Proven long term Stability and Reliability ,Excellent performance of voltage resistance
■ Usage of Food-grade level SS304 housing, meet the FDA and LFGB certification.
■ Connectors could be AMP, Lumberg, Molex, Tyco
Applications:
■ Coffee Machine, Water Heater
■ Hot water boiler tanks, Wall-hanging stove
■ Automobile engines (solid), engine oil (oil), radiators (water)
■ Automobile or motorcycles ,the Electronic fuel injection
■ Measuring oil / coolant temperature
Characteristics:
1. Recommendation as follows:
R25℃=12KΩ±1% B25/50℃=3730K±1% or
R25℃=50KΩ±1% B25/50℃=3950K±1% or
R25℃=100KΩ±1% B25/50℃=3950K±1%
2. Working temperature range: -30℃～+125℃
3. Thermal time constant: MAX. 15sec.(in stirred water)
4. Insulation voltage: 1800VAC, 2sec.
5. Insulation resistance: 500VDC ≥100MΩ
6. Above characteristics all can be customized
