Radial Glass Coated Chip Thermistors for AIRMATIC with Head Size 1.6mm & 2.3mm

Short Description:

MF57 Series of NTC Thermistors are radial glass-encapsulated thermistors with a water and oilproof design, featuring high temperature resistance and accuracy, often used in high temperature and high humidity confined spaces. Suitable for a variety of applications including automotive, motorcycle, household appliances, industrial controls, etc.

Send email to us

Product Detail

Product Tags

Product Details

Place of Origin:	Hefei，China
Brand Name:	XIXITRONICS
Certification:	UL , RoHS , REACH
Model Number:	MF57 series

Delivery & Shipping Terms

Minimum Order Quantity:	500 pcs
Packaging Details:	In Bulk , Plastic Bag Vacuum Packing
Delivery Time:	2-5 working days
Supply Ability:	60 Million Pieces Per Year

Parameter Characteristics

R 25℃:	0.3KΩ-2.3 MΩ	B Value	2800-4200K
R Tolerance:	0.2%, 0.5%, 1%, 2%, 3%	B Tolerance:	0.2%, 0.5%, 1%, 2%, 3%

Features:

■ Head size is much smaller, mass production can do 0.8mm, good consistency in appearance
■ 2.3mm and 1.8mm head sizes have good mechanical properties with a focus on high reliability;
■ 1.6mm and 1.3mm head sizes have a good balance of mechanical strength and responsiveness;
■ less than 1.1mm head sizes have high responsiveness requirements

Applications

■ Smart home appliances, HVAC equipment
■ Highly responsive in-vehicle use (water, intake air, battery, motor and fuel)
■ Motors for HV (Hybrid Vehicles) / EV (Electric Vehicles)
■ Assembly into various probes of Temperature sensors with high quality requirements
■ High-end instruments, testing equipment, etc.

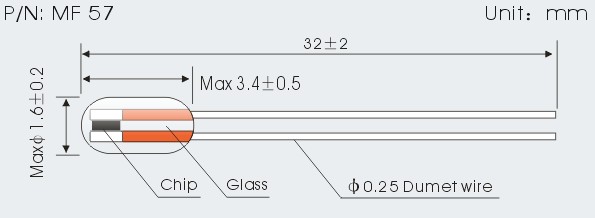

Dimensions

Product specification

Specification	R25℃ (KΩ)	B25/50℃ (K)	Disspation Constant (mW/℃)	Time Constant (S)	Operation Temperature (℃)
XXMF57-310-102□	1	3200	0.8 - 1.2 typical in still air at 25℃	6 - 12 typical in still air	-25～250
XXMF57-338/350-202□	2	3380/3500
XXMF57-327/338-502□	5	3270/3380/3470
XXMF57-327/338-103□	10	3270/3380
XXMF57-347/395-103□	10	3470/3950
XXMF57-395-203□	20	3950
XXMF57-395/399-473□	47	3950/3990
XXMF57-395/399/400-503□	50	3950/3990/4000
XXMF57-395/405/420-104□	100	3950/4050/4200
XXMF57-420/425-204□	200	4200/4250
XXMF57-425/428-474□	470	4250/4280
XXMF57-440-504□	500	4400
XXMF57-445/453-145□	1400	4450/4530
