Silver Plated Telfon Insulated Epoxy Coated Thermistors For Car Seat Heating

Short Description:

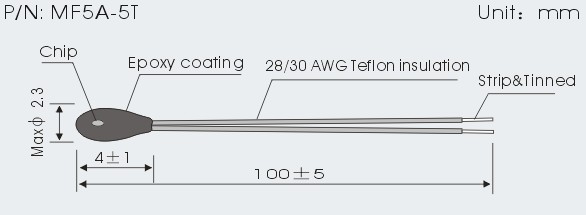

MF5A-5T This silver plated teflon insulated leads wire epoxy coated thermistor, can withstand temperatures up to 125°C, occasionally 150°C, and 90-degree bend test up to more than 1,000 times, widely used in automotive seat heating, steering wheel and rearview mirror heating. It has been extensively used for more than 15 years in BMW, Mercedes-Benz, Volvo, Audi and other vehicles with heated seats.

Send email to us

Product Detail

Product Tags

Product Details---Miniature Sensor With Bendable Wires

Place of Origin:	Hefei，China
Brand Name:	XIXITRONICS
Certification:	UL , RoHS , REACH
Model Number:	MF5A-5 series

Delivery & Shipping Terms

Minimum Order Quantity:	500 pcs
Packaging Details:	In Bulk , Plastic Bag Vacuum Packing
Delivery Time:	7 working days
Supply Ability:	2 Million Pieces Per month

Parameter Characteristics

R 25℃:	0.3KΩ-2.3 MΩ	B Value	2800-4200K
R Tolerance:	0.2%, 0.5%, 1%, 2%, 3%	B Tolerance:	0.2%, 0.5%, 1%, 2%, 3%

Features:

■ Lead directly welded chip
■ Thermally Conductive Epoxy double coated
■ The leads are bendable and flexible
■ Long term Stability and Reliability
■ High accuracy and Interchangeability
■ High Sensitivity and Fast thermal response

Applications

■ Automotive car seat heater control and engine management
■ Smart home or small appliance
■ PCB board mounting for over temperature protection
■ Medical equipment and instruments
■ General Instrumentation applications for temperature sensing, control and compensation
