This series of energy storage battery temperature sensor is featured by a metal housing without a hole and without threaded fastening, it is directly inserted into the contact surface inside the battery pack for multi-point temperature detection, which makes it very easy and effective to install and use, with a high voltage, high stability, weathering, moisture corrosion and other characteristics.

■ A glass-encapsulated thermistor is sealed into a lug terminal, Easy to install, size can be customized
■ Proven long term Stability and Reliability , Excellent performance of voltage resistance
■ High Sensitivity and Fast thermal response, Moisture and high temperature resistance
■ Surface mountable and various mounting options
■ Usage of Food-grade level SS304 housing, meet the FDA and LFGB certification
■ Products are in accordance with the RoHS, REACH certification

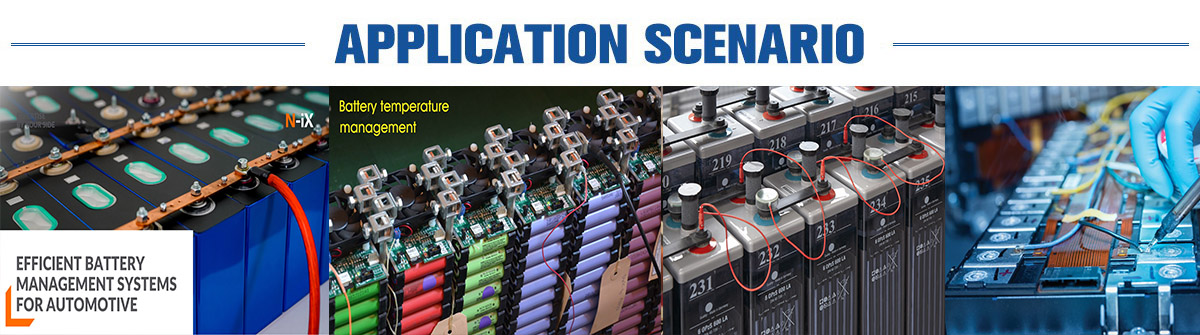

■ Electric vehicle battery Management, Battery pack temperature cheacking
■ Coffee machine, Heating plate, Ovenware
■ Air-conditioners outdoor units and heatsinks (surface), Heat pump water heaters (surface)
■ Automobile inverters, Automobile battery chargers, evaporators, cooling systems
■ Water heater tanks and OBC Charger, BTMS,

1. Recommendation as follows:
R25℃=10KΩ±1% B25/50℃=3950K±1% or
R25℃=15KΩ±3% B25/50℃=4150K±1% or
R25℃=100KΩ±1%, B25/50℃=3950K±1%
2. Working temperature range:
-30℃～+105℃ or
-30℃～+150℃
3. Thermal time constant: MAX.15sec.( typical in stirred water )
4. Insulation voltage: 1800VAC,2sec.
5. Insulation resistance: 500VDC ≥100MΩ
6. PVC, XLPE or teflon cable is recommended
7. Connectors are recommended for PH, XH, SM, 5264 and so on
8. Above characteristics all can be customized
