This series of products are generally used for high temperature control of household appliances, and in recent years have also been used in a large number of new energy vehicle and energy storage equipment.
This series of products is designed with buckle fixing, using high-temperature materials and insulating sleeves, and using high-temperature sealant to fix and conduct heat. When the product is applied at a high temperature of 230 degrees, it can work normally.
The series is easy and convenient to install, and the size can be customised according to the installation structure. Its resistance and B-value are of high precision, good consistency, stable performance, and moisture-proof, high-temperature-resistant, and applicable to a wide range of applications.

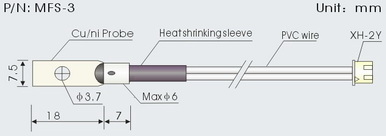

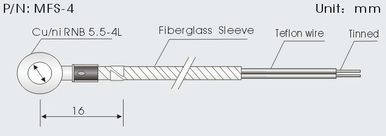

■ A glass-encapsulated thermistor element is sealed into a lug terminal
■ Proven long term Stability, Reliability and High Durability
■ High Sensitivity and Fast thermal response
■ Surface mountable and various mounting options
■ Easy to install, and can be customized according to your every single requirement

■ Induction Stove, Hot plates for cooking devices
■ Hot water boiler tanks, Water heater tanks and heat pump water heaters (surface)
■ Air-conditioners outdoor units and heatsinks (surface)
■ Automobile braking systems temperature detection (surface)
■ Automobile engines (solid), engine oil (oil), radiators (water)
■ Automobile inverters, Automobile battery chargers, evaporators, cooling systems

1. Recommendation as follows:
R25℃=100KΩ±1%, B25/50℃=3950K±1% or
R25℃=98.63KΩ±1%, B25/85℃=4066K±1%
2. Working temperature range:
-30℃～+300℃ or
3.Thermal time constant is MAX.3 sec.(on an aluminium plate at 100℃)
4. Withstand voltage: 500VAC, 1 sec.
5. Insulation resistance would be 500VDC ≥100MΩ
6. Cable customized, PVC, XLPE or Teflon cable is recommended, UL1332 26AWG 200℃ 300V
7. Connector is recommended for PH, XH, SM or 5264 and so on
