Surface Mount Temperature Sensor For Battery Cooling Systems,EV Battery Management Systems,Motor Protection

MFS Series temperature sensor, easy to install and fixed to the surface of measured subject by screw, which is widely used to detect the surface temperature for Electric Vehicle Battery Management Systems, Battery Cooling Systems, UPS power cooling fan, Motor Protection, OBC Charger, heating plate of coffee machine, bottom of coffee pot, ovenware and so on. They can meet the requirements of measuring temperature and overheating protection which for a better protection of machine.

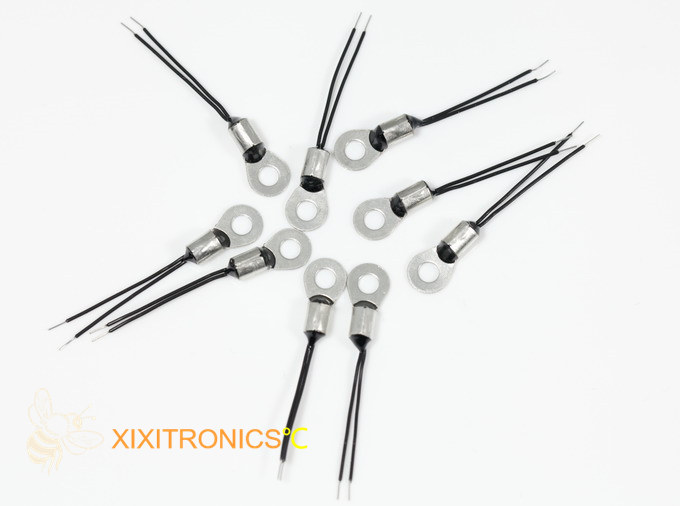

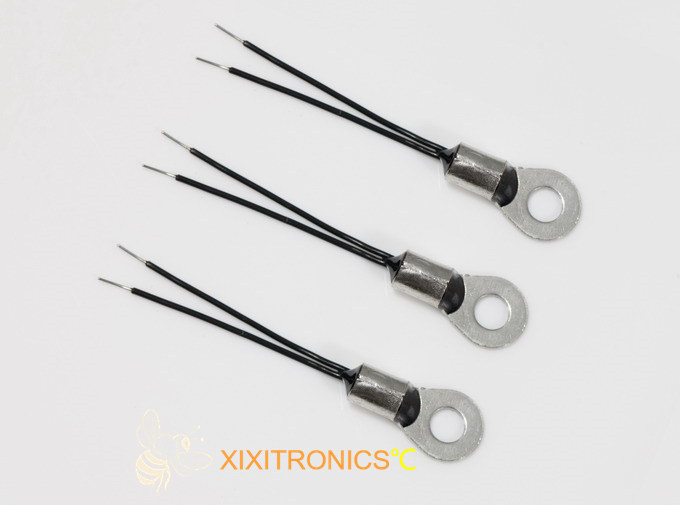

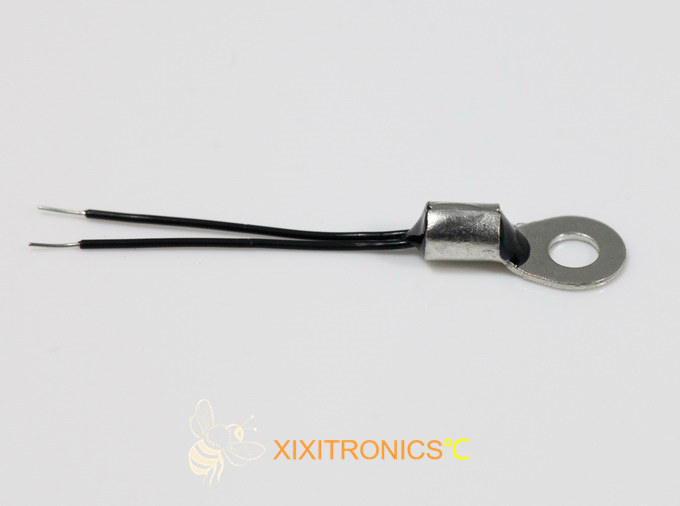

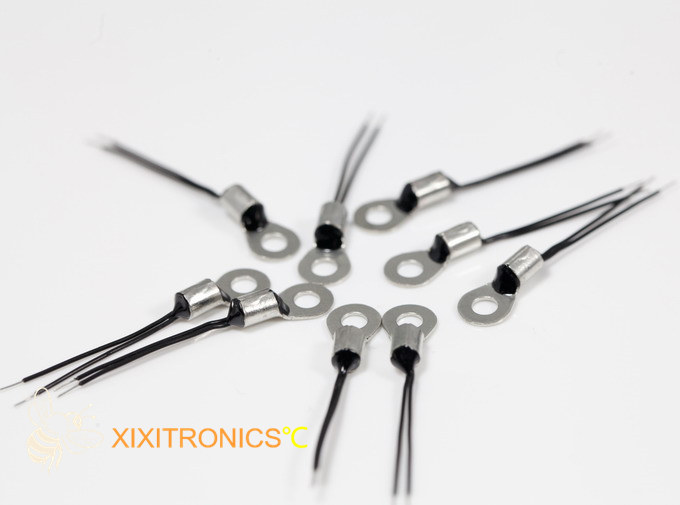

■ A glass-encapsulated thermistor is sealed into a lug terminal, Easy to install, size can be customized
■ Proven long term Stability and Reliability, Excellent performance of voltage resistance
■ High Sensitivity and Fast thermal response, Moisture and high temperature resistance
■ Surface mountable and various mounting options
■ Usage of Food-grade level SS304 housing, meet the FDA and LFGB certification
■ Products are in accordance with the RoHS, REACH certification

■ EV Battery Management Systems, Battery Cooling Systems
■ Automobile inverters, Heat pump water heaters (surface)
■ Coffee machine, Heating plate, Ovenware
■ Air-conditioners outdoor units and heatsinks (surface)
■ Automobile battery chargers, evaporators
■ Motor Protection, Cooling systems
■ Water heater tanks and OBC Charger, BTMS,

1. Recommendation as follows:
R25℃=10KΩ±1% B25/50℃=3950K±1% or
R25℃=15KΩ±3% B25/50℃=4150K±1% or
R25℃=100KΩ±1%, B25/50℃=3950K±1%
2. Working temperature range:
-30℃～+105℃ or
-30℃～+150℃
3. Thermal time constant: MAX.15sec.( typical in stirred water )
4. Insulation voltage: 1800VAC,2sec.
5. Insulation resistance: 500VDC ≥100MΩ
6. PVC, XLPE or teflon cable is recommended
7. Connectors are recommended for PH, XH, SM, 5264 and so on
8. Above characteristics all can be customized
