TPE Overmolding Waterproof Temperature Sensor

Short Description:

This type TPE sensor is modelled after Semitec, features high accuracy with tight resistance and B-value tolerances (±1%). 5x6x15mm head size, parallel wire with good bendability, long term reliability. A very mature product, with a very competitive price.

Send email to us

Product Detail

Product Tags

TPE Overmolding Waterproof Temperature Sensor 103AT Series

This is a classic injection moulded temperature sensor with a 5x6x15mm head size and 0.3 sq TPE resin parallel wire. Compared with those round cable wires, its bending performance is much better, and it can be better adapted to some space-specific use environment.

Features:

■ IP68 Rated , Consistent dimension of molded probe head
■ TPE Injection Over-molded probe
■ Proven long term Stability and Reliability
■ High Sensitivity and Fast thermal response

Applications:

■ HVAC equipment, solar systems
■ Automobile air conditioners, agricultural equipment
■ Vending machines, refrigerated display cases
■ Measuring instruments, controllers

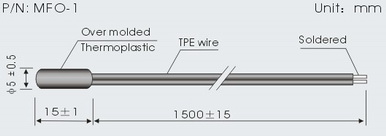

Dimensions:

Product specification:

Specification	R25℃ (KΩ)	B25/50℃ (K)	Disspation Constant (mW/℃)	Time Constant (S)	Operation Temperature (℃)
XXMFT-O-10-102□	1	3200	approx. 3 typical in still air at 25℃	6 - 9 typical in stirred water	-30～105
XXMFT-O-338/350-202□	2	3380/3500
XXMFT-O-327/338-502□	5	3270/3380/3470
XXMFT-O-327/338-103□	10	3270/3380
XXMFT-O-347/395-103□	10	3470/3950
XXMFT-O-395-203□	20	3950
XXMFT-O-395/399-473□	47	3950/3990
XXMFT-O-395/399/400-503□	50	3950/3990/4000
XXMFT-O-395/405/420-104□	100	3950/4050/4200
XXMFT-O-420/425-204□	200	4200/4250
XXMFT-O-425/428-474□	470	4250/4280
XXMFT-O-440-504□	500	4400
XXMFT-O-445/453-145□	1400	4450/4530
