Long tube Flange Temperature Sensor for Dispenser,Drinking Fountain

This is a SUS long tube flanged temperature sensor, which uses high thermal conductive paste injected into the tube to speed up the heat conduction, flange fixing process for a better fixation and food-level SS304 tube for a better food safety. It can be designed and produced according to every single requirement such as size, outline, characteristics and so on. The customization can help customer have an easy installation, especially the products with flange.
Widely used in the production of kitchen appliances such as Water Dispenser,Drinking Fountain,Electric ovens,Toaster,Electric oven,Air Fryer and microwave ovens.

Features:

■ Glass-encapsulated thermistor elements which withstand high voltage are available
■ Outstanding accuracy and response solution for oven temperature control
■ Max. temperature up to 300℃ (from the tip of protection tube to the flange)
■ Usage of Food-grade level SS304 housing, meet the FDA and LFGB certification.
■ Products are in accordance with the RoHS, REACH certification.

Applications:

■ Dispenser,Drinking Fountain
■ Baked Oven, Electric oven, Air Fryer
■ Heaters and Air Cleaners (inside ambient)
■ Microwave oven chambers (air & vapor)
■ Vacuum cleaners (solid)

Characteristics:

1. Recommendation as follows:
R25℃=10KΩ±1% B25/50℃=3950K±1% or
R25℃=50KΩ±1% B25/50℃=3950K±1%
2. Working temperature range: -30℃～+105℃ or -30℃～+150℃
3. Thermal time constant: MAX.10sec.( typical in stirred water )
4. Insulation voltage: 1800VAC,2sec.
5. Insulation resistance: 500VDC ≥100MΩ
6. Teflon cable UL 1332 or XLPE cable is recommended
7. Connectors are recommended for PH, XH, SM, 5264 and so on
8. Above characteristics all can be customized

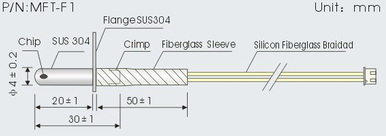

Dimensions:
