Fast Response bullet shape Temperature sensors for smart toilets and heat pumps

Short Description:

Because of its excellent waterproof and moisture-proof performance and rapid thermal response, this temperature sensor is widely used in smart toilets and heat pumps. The fastest thermal response can reach 0.5 seconds, and we produce millions of these sensors every year.

Send email to us

Product Detail

Product Tags

Fast Response Temperature sensors for heat pumps and Warm-water Bidet Toilets

This bullet shape sensor with characteristics of small size, moisture-proof and fast response, are widely used for Warm-water Bidet Toilets, Heat Pump, electric kettle, coffee machine, water heater, milk foam machine, heating component of direct drinking machine and other fields with high sensitivity of temperature measurement.
MFB-8 series are with excellent temperature resistance, can be used up to 180℃, prevent overheating and dry burning from damaging the electrical parts of products. Minimum ф 2.1mm is a available for sensing part of encapsulated NTC thermistor, through process controlling of internal high thermal conductivity medium, to ensure the product thermal time constant τ(63.2%)≦2 seconds, and the fastest can reach 0.5 seconds.
MFB-08 series is designed with ground terminal piece to avoid electricity leakage, in accord with UL safety and so on.

Features:

■ High Sensitivity and the Fastest thermal response
■ Good waterproof performance, moisture and high temperature resistance
■ A radial glass-encapsulated thermistor element is sealed with epoxy resin, Excellent performance of voltage resistance.
■ Proven long term Stability, Reliability, and High Durability
■ Easy to install, and can be customized according to your every single requirement
■ Usage of Food-grade level SS304 housing, meet the FDA and LFGB certification.
■ Products are in accordance with the RoHS, REACH certification.

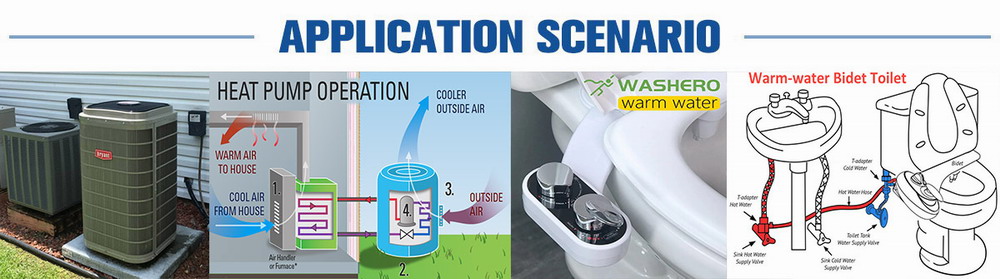

Applications:

■ Warm-water Bidet Toilets (instant inlet water)
■ Coffee machine, Milk Warmer,Heat Pump
■ Water Heater, Hot water boiler tanks,
■ Electric Kettle, Milk Foam Machine, Coffee machine
■ Covers the whole water temperature range, wide application range

Characteristics:

R25℃=10KΩ±1%, B25/85℃=3435K±1% or
R25℃=50KΩ±1%, B25/50℃=3950K±1%or
R25℃=100KΩ±1%, B25/50℃=3950K±1%
2. Working temperature range:
-30℃～+105℃ ,
-30℃～+150℃
-30℃～+180℃
3. Thermal time constant is MAX.3 sec.(in stirred water)
4. Insulation voltage is 1800VAC,2sec.
5. Insulation resistance is 500VDC ≥100MΩ
6. Cable customized ,PVC, XLPE, teflon cable is recommended
7. Connectors are recommended for PH,XH,SM,5264 and so on
8. Above characteristics all can be customized
