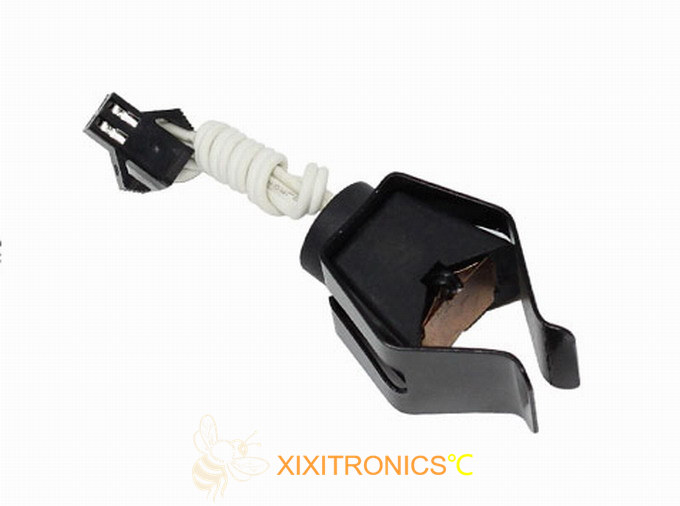

Pipe Clamp Temperature Sensor For Wall Mounted Furnace

Gas wall-hung boilers have two major functions: heating and domestic hot water, so the temperature sensors are divided into two categories: heating temperature sensors and hot water temperature sensors, which are installed inside the wall-hung boiler on the heating water outlet pipe and the sanitary hot water outlet pipe, and they sense the operation status of heating hot water and domestic hot water respectively, and obtain the very accurate operation temperature.

Features:

■ Spring Clip Sensor , Rapid Response ,Easy to Install
■ Moisture Resistant , High accuracy
■ Proven long term Stability and Reliability
■ High Sensitivity and Fast thermal response
■ Excellent performance of voltage resistance
■ Long and flexible leads for special mounting or assembly

Performance Parameter:

1. Recommendation as follows:
R25℃=50KΩ±1%, B25/50℃=3950K±1%
2. Working temperature range: -20℃～+125℃
3. Thermal time constant: MAX.15sec.
4. Insulation voltage: 1500VAC, 2sec.
5. Insulation resistance: 500VDC ≥100MΩ
6. Pipe Size: Φ12~Φ20mm, Φ18 is very common
7. Wire: UL 4413 26#2C,150℃,300V
8. Connectors are recommended for SM-PT,PH, XH, 5264 and so on
9. Above characteristics all can be customized

Applications:

■ Air-conditioners (room and outdoor air)
■ Automobile air conditioners & heaters ,Endothermic pipe
■ Electric water boilers and water heater tanks (surface) Hot-water pipe
■ Fan heaters ,Condenser pipe
