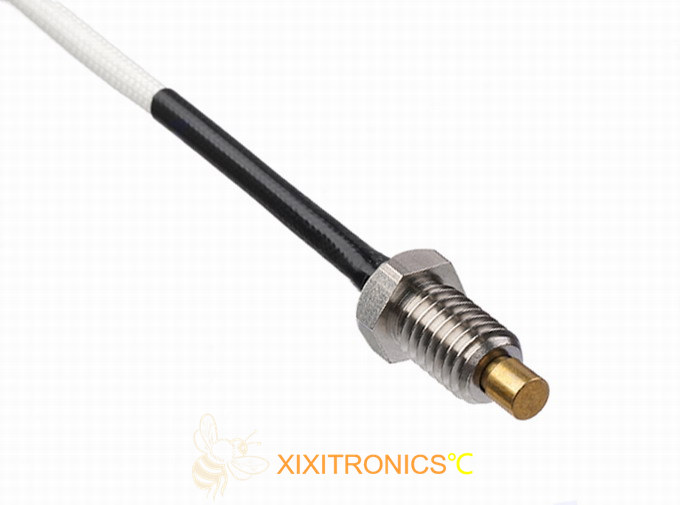

This temperature sensor for coffee makers has a built-in element that can be used as an NTC thermistor, a PT1000 element, or a thermocouple. Fixed with threaded nut, it is also easy to install with good fixing effect. Can be customized according to customer's requirements, such as size, shape, characteristics, etc.
The series using high accuracy chip,other high quality materials with advanced processing technology, which make the products have stable and reliable performance, high sensitivity of temperature measurement.

The current coffee machine often stores heat in advance by increasing the thickness of the electric heating plate, and uses a thermostat or a relay to control the heating, and the heating overshoot is large, so it is necessary to install an NTC temperature sensor to strictly control the temperature accuracy.

When the temperature sensor judges that the temperature is lower than 65°C, the heating device will heat at full power; Switch back to 20% until it is heated to the heat preservation state; this preheating process makes the temperature of the electric heating plate rise rapidly in the early stage, and slowly heats up in the later stage, so that the temperature can be raised quickly, and the temperature accuracy can be well controlled to ensure that the electric heating plate will not be caused by The temperature hysteresis of the temperature sensor leads to the overheating of the electric heating plate, which can ensure the temperature accuracy at the moment before the coffee is dispensed, and reduce the variable factors in the coffee dispense process.

■ To install and fixed by screw thread, easy to install, Shape and size can be customized according to installation structure
■ High precision of Resistance value and B value, good consistency
■ Proven long term Stability and Reliability,wide range of applications
■ Excellent performance of voltage resistance
■ Usage of Food-grade level SS304 housing, meet the FDA and LFGB certification.
■ Products are in accordance with the RoHS, REACH certification.

■ Commercial coffee machine, Air Fryer and Baking Oven
■ Heating plate, industrial control
■ Automobile engines (solid)
■ Engine oil (oil), radiators (water)
■ Soybean milk machine
■ Power system

1. Recommendation as follows:
R100℃=6.282KΩ±2% B100/200℃=4300K±2% or
R200℃=1KΩ±3% B100/200℃=4537K±2% or
PT100 / PT1000 or
Thermocouple
2. Working temperature range:
-30℃～+200℃
3. Thermal time constant: MAX7 sec. ( typical in stirred water )
4. Insulation voltage: 1800VAC,2sec.
5. Insulation resistance: 500VDC ≥100MΩ
6. PVC, XLPE or teflon cable is recommended
7. Connectors are recommended for PH, XH, SM, 5264 and so on
8. Above characteristics all can be customized
